The Yearling Software Sword

This is a bit of an interesting one! We recently were trying to figure out what the best way of describing what the flight software stack looks like and a sword is what it eneded up being!

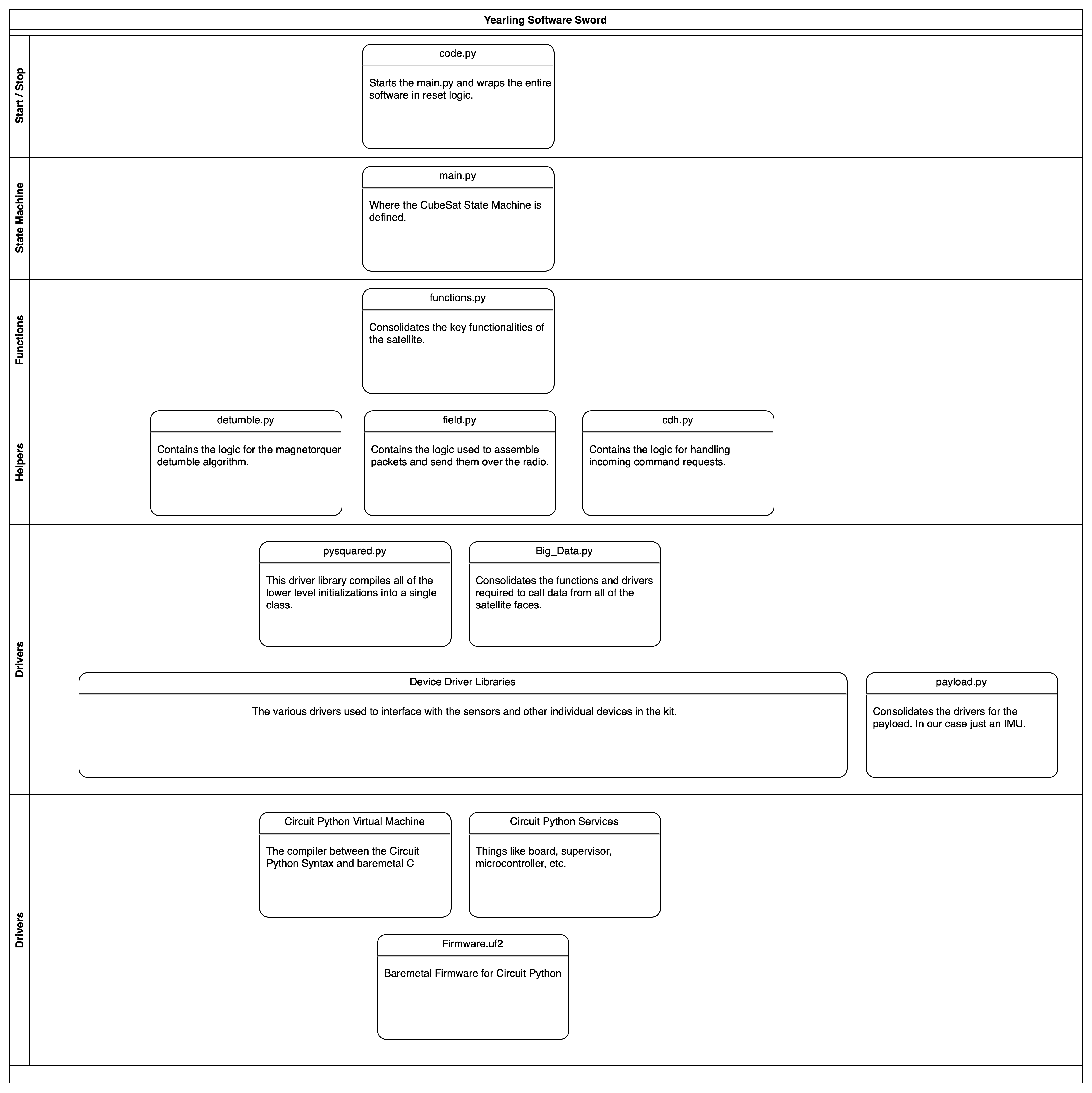

Figure 1: The Software Sword for Pleiades - Yearling 1

This diagram expresses the overall class structure of the Yearling Flight Software from the baremetal firmware all the way at the bottom up to the highest level cody.py at the top. We generally recommend that the end user only goes down to the functions.py level when defining their own software, unless they are added their own custom hardware to the stack!

Here is a visualization of the development process for our software!

Pleiades - Yearling 2

Parameter	Value
Operational?	No
Frequency	437.4 Mhz
Modulation	LoRa
Spreading Factor	8
Callsign	KN6NAQ

Pleiades - Squared

Parameter	Value
Operational?	No
Frequency	437.4 Mhz
Modulation	LoRa & FSK
Spreading Factor	8
Callsign	KN6NAT
